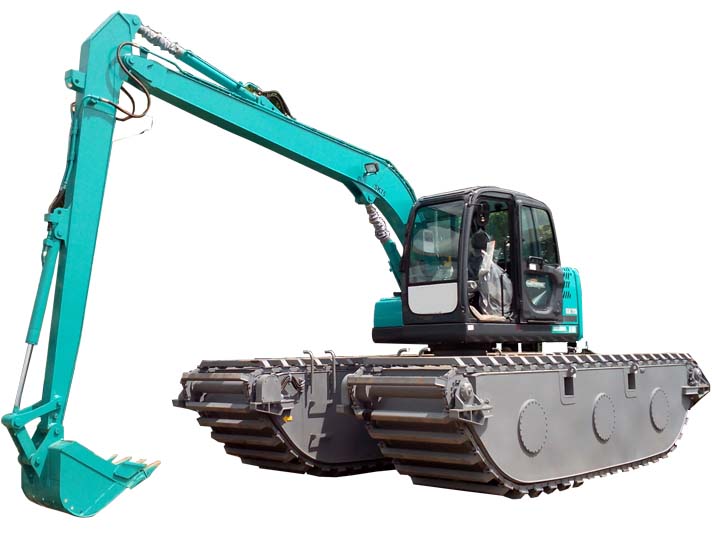

TR 80

TR 80 Designed for 6 - 8 Ton Class Excavators





NO PART ft m
A
 Track Length On Ground 10??? 5??? 3.17
B
 Maximum Track Length 20??? 7??? 6.28
C
 Rear Upperstructure Length 4??? 3??? 1.30
D
 Overall Length 28??? 9??? 8.76
E
 Height Of The Boom 9??? 2??? 2.80
F
 Upperstructure Clearance 5??? 4??? 1.62
G
 Overall Width (min/max) 6??? 9???/9??? 5??? 2.06/2.86
H
 Track Width (min/max) 11??? 1???/13??? 8??? 3.38/4.18
I
 Track Gauge (min/max) 11??? 7??? 3.51/4.31
J
 Pontoon Width 4??? 3??? 1.30
K
 Minimum Ground Clearance 3??? 5??? 1.05
L
 Track Height 4??? 11??? 1.50
M
 Overall Cab Height 11??? 7??? 3.53
N
 Upperstructure Overall Width 7??? 5??? 2.27
P
 Estimated Water Level 4??? 1??? 1.25

- Based on TSBC 9 meter Long Reach Package

- Dimension based on estimation
