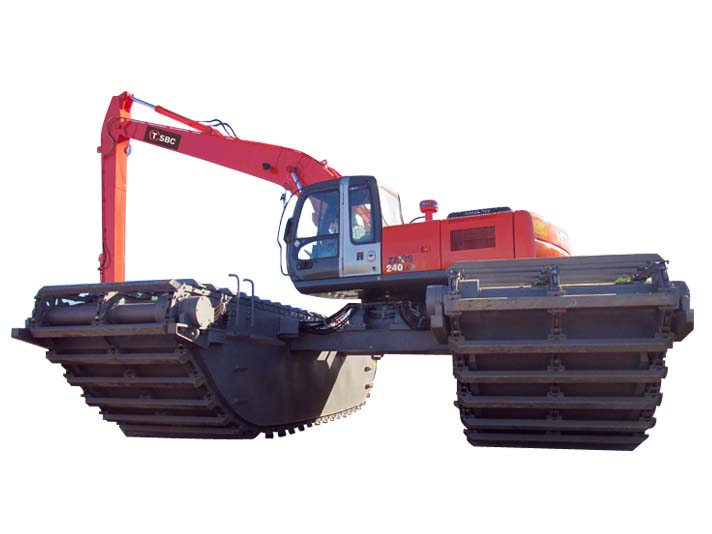

TR 250

TR 250 Designed for 24 - 27 ton Class Excavator





NO PART ft m
A
 Track Length On Ground 13??? 7??? 4.15
B
 Maximum Track Length 31??? 7??? 9.63
C
 Rear Upperstructure Length 9???10??? 3
D
 Overall Length 47??? 3??? 14.41
E
 Height Of The Boom 11??? 8??? 3.55
F
 Upperstructure Clearance 7??? 3??? 2.2
G
 Overall Width (min/max) 19??? 3???/21??? 11??? 5.87/6.67
H
 Track Width (min/max) 18??? 4???/21??? 5.58/6.38
I
 Track Gauge (min/max) 12???/14??? 8??? 3.66/4.46
J
 Pontoon Width 6??? 4??? 1.92
K
 Minimum Ground Clearance 4??? 3??? 1.3
L
 Track Height 6??? 8??? 2.03
M
 Overall Cab Height 13??? 6??? 4.12
N
 Upperstructure Overall Width 9??? 4??? 2.85
P
 Estimated Water Level 5??? 5??? 1.65

- Based on TSBC 15 meter Long Reach Package

- Dimension based on estimation
